Forged Fittings
forged Fittings

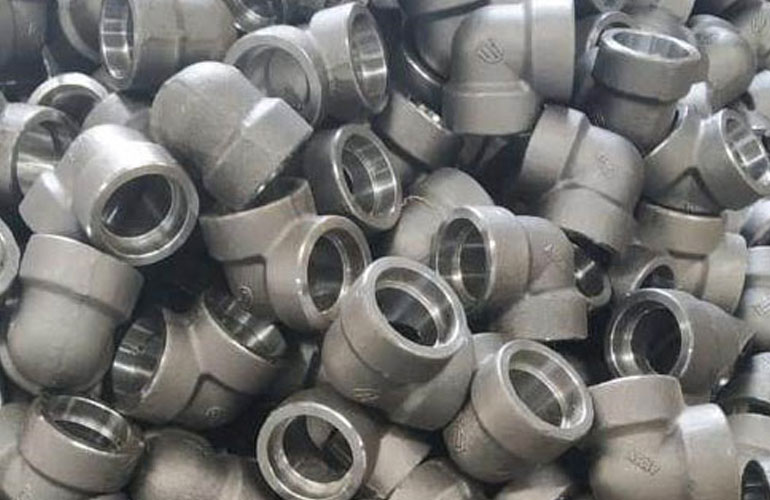

Forged Fittings are used for associating or connecting pipes, pimps, valves & other equipments to create a piping system below the size of 2 or 4 inches in diameter. There are mainly two types of forged fittings called socket-weld fittings which are connected to pipes by fillet welds and second one is threaded fittings in which the pipe is screwed onto the fittings. Forged Fitting joints are made by bolting together two Forged fittings with a gasket between them to give a seal.
Standard Specification for Forged Fittings
| Range : | 15 NB to 100 NB x 2000# to 9000# |
| Form : | Socket weld/Threaded – Elbow, Tee, Cross, Reducer, Coupling, cap, Hex Nipple, Hex Plug, Round Plug, Square Plug, Bushing, Union, Weldolet, Threadolet, Sockolet, Elbolet, Nipolet, Flageolet, Latrolet, Sweepolet etc |
Grades: ASTM A182 & ASME SA182 GR F201, F202, F301, F302, F304, F304L, F309, F310, F316, F316L, F316LN, F316Ti, F317L, F321, F347, 405, 409, 410, 420, 430, 440C, F904L
Duplex Stainless Steel Forged Fitting Specifications
Grades: ASTM A182 & ASME SA182 GR 2205 (F51, S31803 / F60, S32205), SMO254 (F44, S32154), 2507 (F53, S32750 / F55, S32760), Ferralium 255 (F61 S32550 etc
Carbon Steel Forged Fitting Specifications
Grades: ASTM A105 / A350 Gr. LF2, LF3, ASTM A694 – F42, F46, F48, F50, F52, F56, F60, F65, F70.
Alloy Steel forged Fitting Specifications
Grades: ASTM A182 & ASME SA182 GR F1, F5, F9, F11, F12, F22, F91
High Nickel Alloy Forged Fitting Specifications
Grades:ASTM B564 / A182 GR 200 (N02200), 201 (N02201), Alloy 20 (F20, N08020), 600 (N06600), 601 (N06601), 625 (N06625), 718 (N07718), 800 (N08800), 800H (N08810), 800HT (N08811), 825 (N08825), 904L (N08904), 400 (N04400), 500 (N05500), C726 (N10276), C4 (N06455), C22 (N06022), C2000 (N06200), X (N06002), B2 (N10665), B3 (N10675).
Alloy 20 Forged Fitting Specifications
Grades: ASTM B462 & ASME B462 GR Alloy 20 (N08020)
Titanium Forged Fitting Specifications
Grades: ASTM B381 & ASME B381 GR F2, F5 (Ti6AI4V), F7
Copper & Copper Alloy Forged Fitting Specifications.
Grades:ASTM B122, B171, B466, B467 Commercial, ETP, OFE, CuNi 90/10 (C70600), CuNi 70/30 (C71500), Brass, Naval Brass, Aluminium Bronze, Admiralty Brass.
